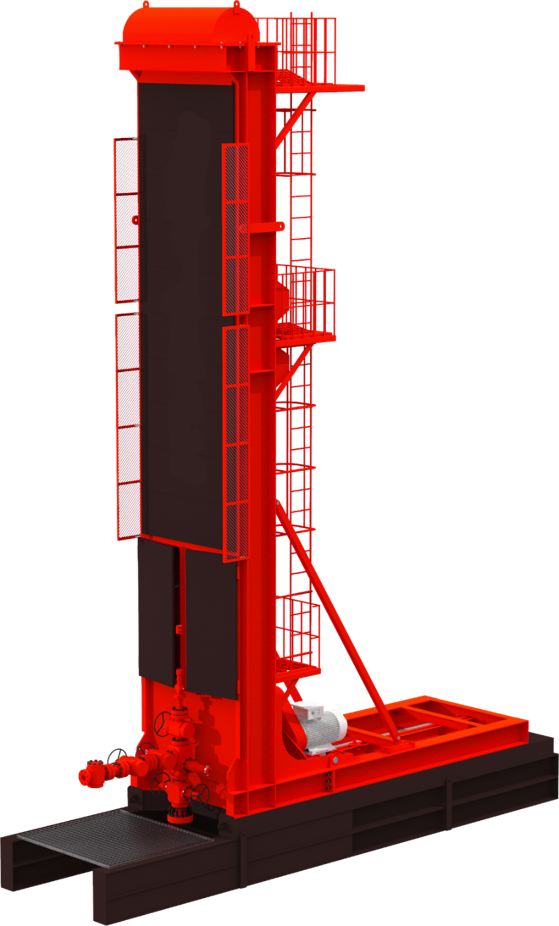

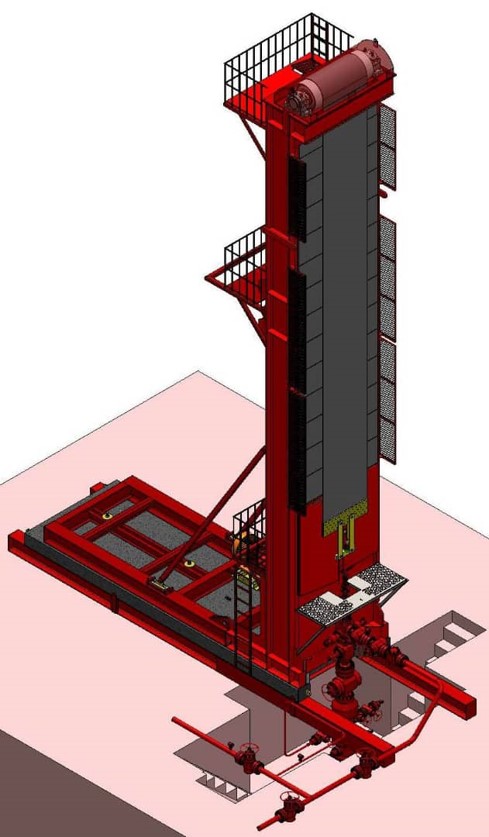

LSSRP Long Stroke SRP
Load capacity: 35,000 lbf / 50,000 lbf
Stroke length: 295 in (7.5 m) / 366 in (9.3 m)
Stroke per minute: 0 to 4.5 / 3.0 SPM
Counterweight: mechanical
Control system: VFD, Dynamo-graph, load & performance control, safety features (as per client request)
Production rate: up to 1500 / 2000 bpd
Technology: Special Belt Driven Long Stroke
Manufacturing: OST, Oman
Stroke length: 295 in (7.5 m) / 366 in (9.3 m)
Stroke per minute: 0 to 4.5 / 3.0 SPM
Counterweight: mechanical
Control system: VFD, Dynamo-graph, load & performance control, safety features (as per client request)
Production rate: up to 1500 / 2000 bpd
Technology: Special Belt Driven Long Stroke
Manufacturing: OST, Oman

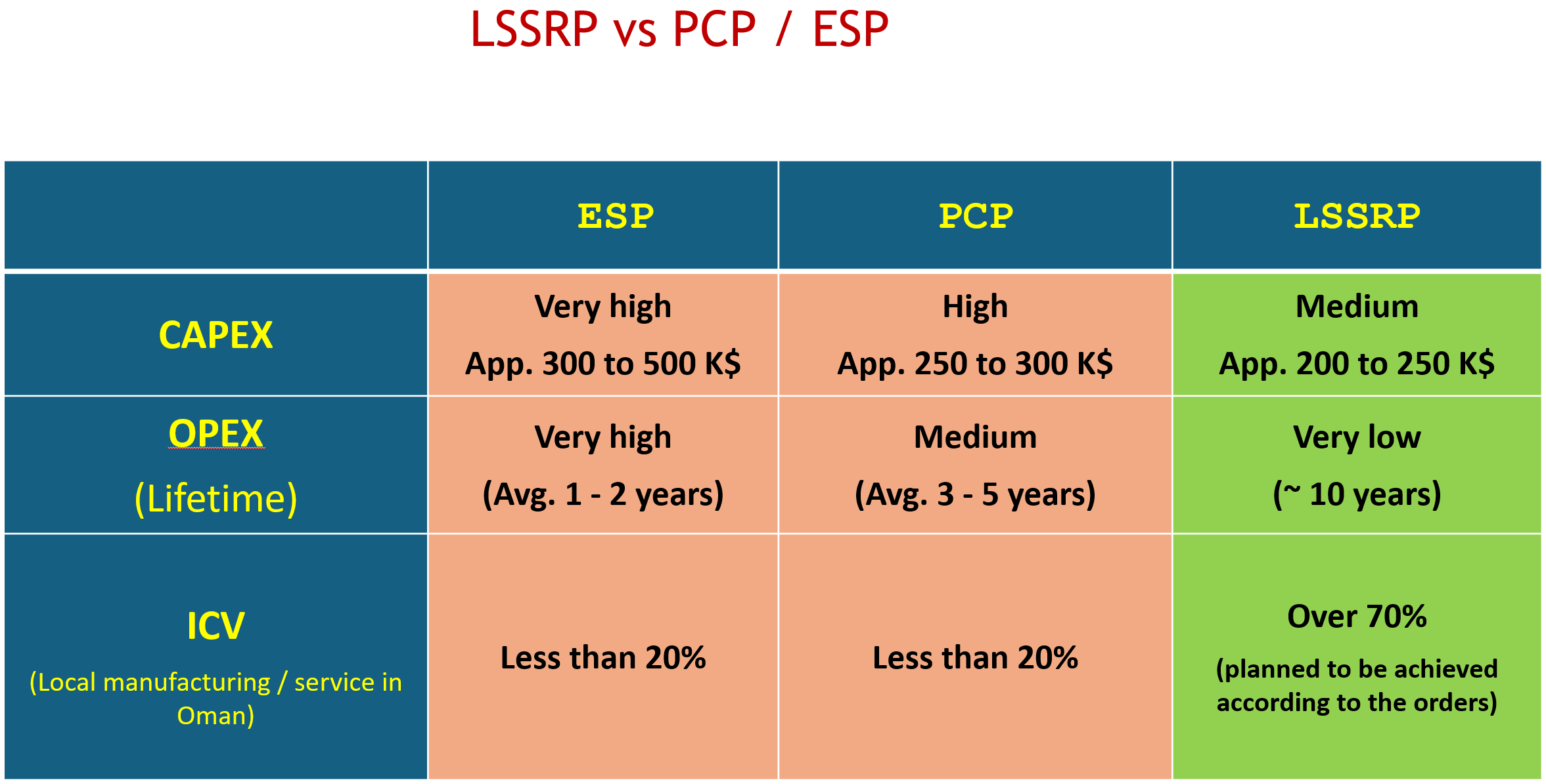

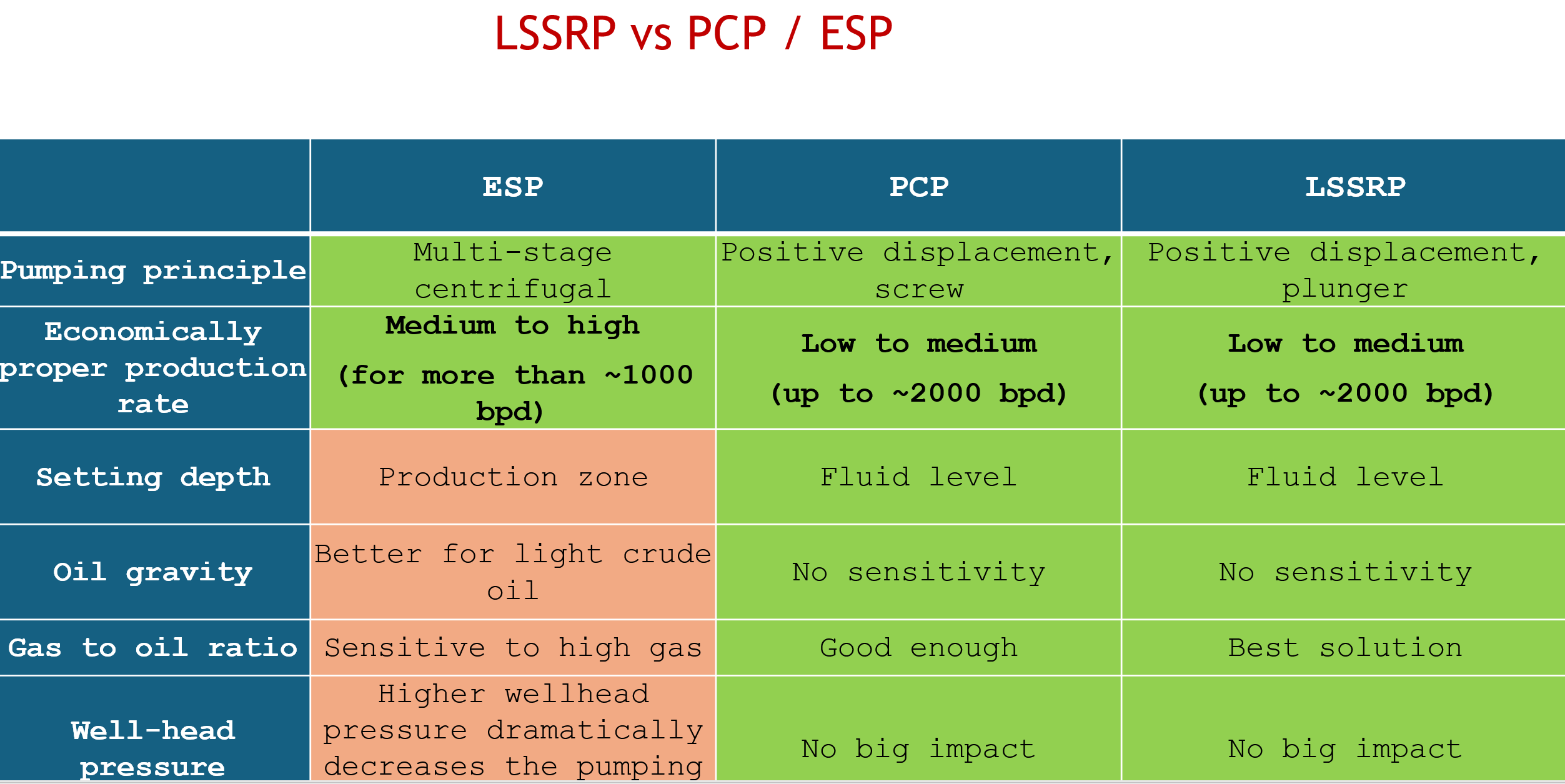

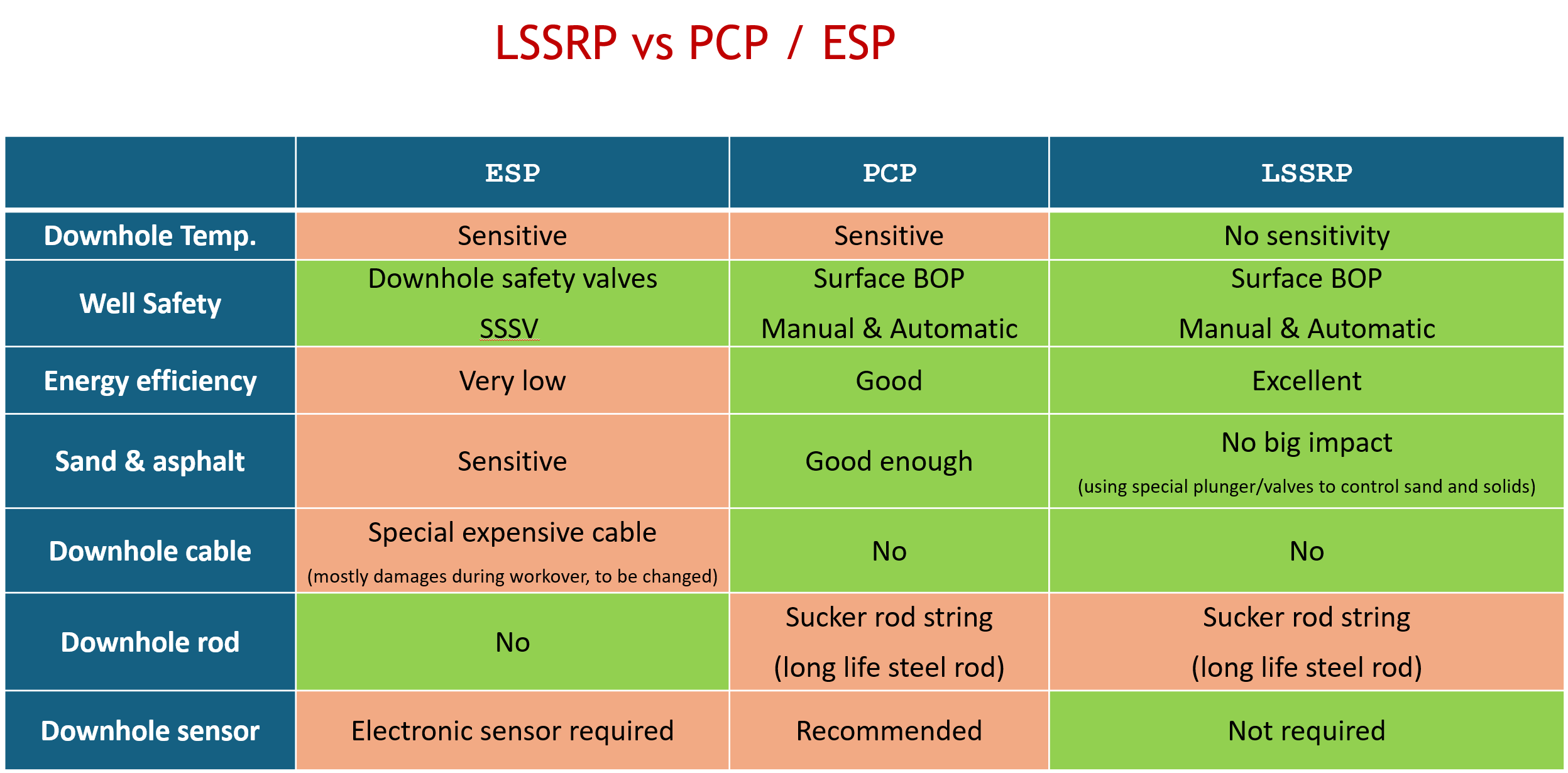

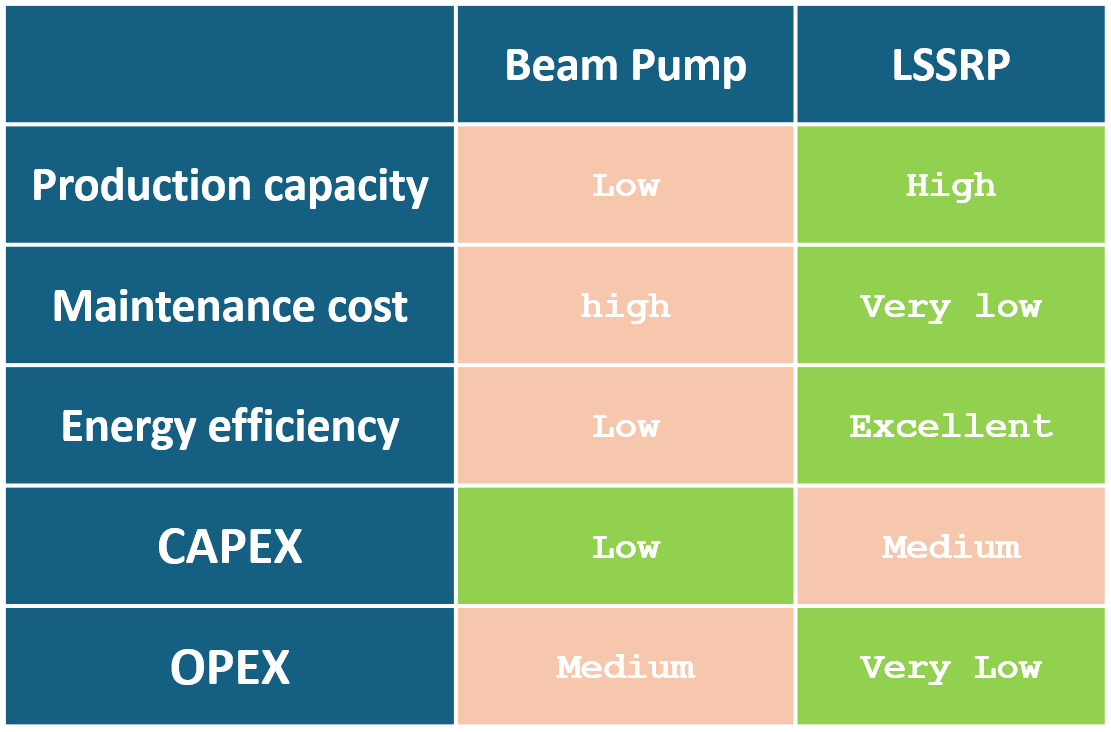

LSSRP vs Other Artificial Lift
Higher production
Reliable Mechanism
Competitive Price
Low Operation Cost
Low Maintenance Cost
Reliable Mechanism
Competitive Price
Low Operation Cost
Low Maintenance Cost
Competitive High Lights
Long lift-time
Very low maintenance
Good production
